Product Specifications
BASIC INFORMATION
Operating SystemGoogle TV
Storage16GB
LanguagesEnglish, Vietnamese, Thai, Chinese, Russian,
Arabic, Traditional Chinese, Indonesian, French, Spanish (Latin America),
Farsi, Mongol, Uzbek, Hebrew.
TV SystemATV: Auto/PAL/NTSC DTV: DVB-T MPEG2/MPEG4 DVB-T
Compatible
AV SystemPAL, NTSC
HDMI & HDCP Version3 x HDMI2.1, HDCP2.2
HDRHDR10+ & Dolby Vision
Power SupplyAC 100V-240V 50/60Hz
Power Consumption (Standby)﹤0.5W
Star Rating5.5 Star
CEC284 Kwh
ECO Energy EfficiencyYes
BASIC FUNCTION
Google Assistant/Voice SearchVoice input via voice remote
control (RC833A). Hands-free voice input via built-in MIC.
Instant Power OnSpecial mode for quick boot up
CECYes
TeletextYes
EPGYes (Only for DTV Programme)
SubtitleYes (Only for DTV Programme)
Parental ControlYes (for DTV programme only)
USB PVR/Pause Live TVYes/Yes
Picture ModesVivid, Standard, Sports, Movie, Intelligent,
Game, PC
Aspect Ratio16:9/4:3/Wide Zoom/Zoom 2/ Wide Zoom 2/Stretch
Zoom/ Auto Detect
Dynamic BrightnessOff/ECO/Brightness+
Motion ClarityOn/Off
OverscanOn/Off
AiPQ ProcessorYes
Auto Low Latency Mode (ALLM)Yes
Wide Colour GamutYes
Quantum Dot TechnologyYes
DLG*/VRR*120Hz/120Hz *Up to 2K for gaming
CONNECTIVITY
Internet Connectivity2.4GHz + 5GHz dual-band Wi-Fi 802.11
a/b/g/n/ac Ethernet Network
BluetoothYes. Bluetooth 5.4
HDMI Inputs3 x HDMI Inputs (2.1), HDCP2.2
USB Inputs1 x USB 3.0
AV INYes
Optical SPDIF Output/HDMI eARCYes
EARCYes
USB DEVICE MEDIA FORMAT
MusicMP3/WMA/MKV/AVI
PictureJPEG/PNG/BMP/HEIF Codec
Multimedia Video/Audio DecoderH.264, MPEG1/2/4, WMV, VC1,
VP8, VP9, AV1
Video Format up toUp to 4K@60Hz
USB Mouse/Key Board SupportYes
SMART TV FEATURES
Google AssistantWorks with Alexa
Hands Free Voice ControlMedia Center
Google Play StoreAmazon Prime
YouTubeFreeview
Google Play Movies/TVStan
Chromecast Built-inNetflix
Works with Apple AirPlayKayo/Binge/Disney+/
Works with Apple HomeKitParamount+/Apple TV+ *Available on
Google Play Store.
PANEL SPECIFICATION
Backlight UnitDLED
Aspect Ratio16:9
Display ResolutionUltra HD (3840×2160)
Brightness350 Nits (typ)
Contrast Ratio5000:1
Response Time (G to G)6.5ms
Viewing Angle (H/V)178°/178°
Clear Motion Rate (CMR)100
SOUND
Audio Power Output2 x 10W
Sound ModesStandard/Movie/Music/Voice/Game/Sports/Intelligent
Dolby AtmosYes
DTS Virtual: XYes
Audio Channels2.0 Ch
DIMENSIONS&WEIGHT
Dimensions With Stand (mm)1444 (W) x 893 (H) x 320 (D)
Dimensions Without Stand (mm)1444 (W) x 831 (H) x 69.5 (D)
Carton Dimensions (LxWxH mm)1608 x 155 x 1000
Net Weight With Stand (Kg)16
Net Weight Without Stand (Kg)15.8
Gross Weight With Packaging (Kg)23.5
WALL MOUNT VESA(PURCHASED SEPARATELY)
VESA Hole Pattern400 x 300
Screw SizeM6 x 16
Screw Quantity (pcs)4

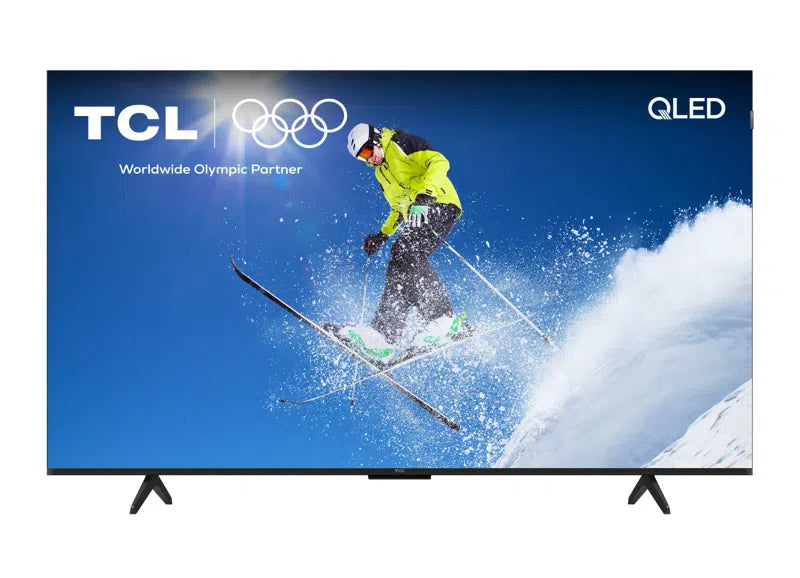

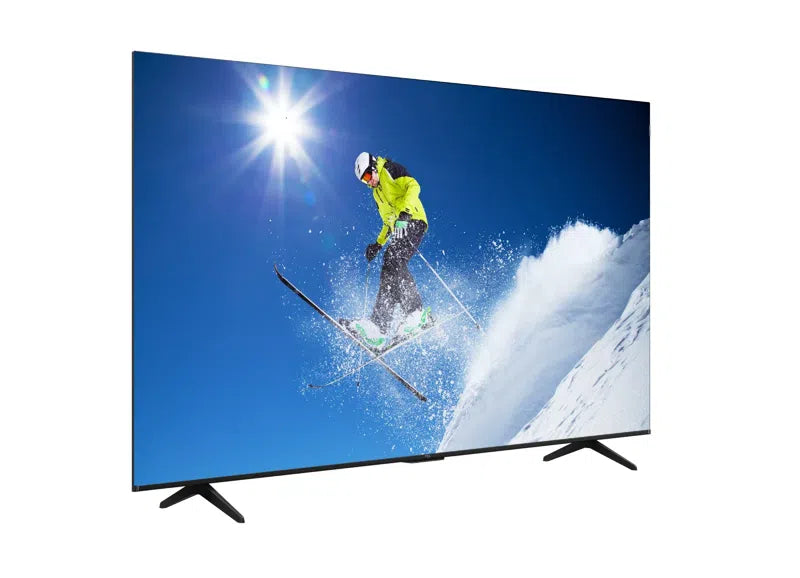

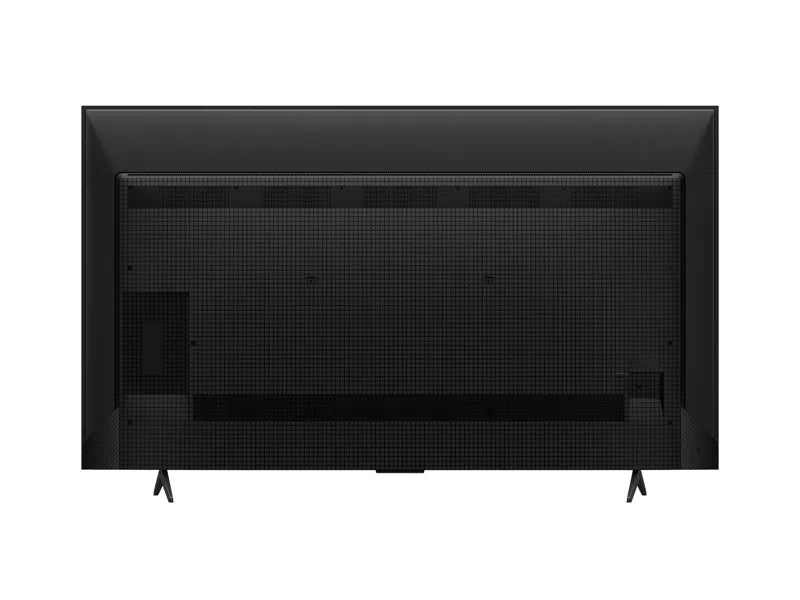

Product SKU: TCL 65P7K
