Product Specifications
BASIC INFORMATION
Operating System:Android TV
Storage:8GB
Languages:English, Vietnamese, Thai, Chinese, Russian,
Arabic, Traditional Chinese, Indonesian, French, Spanish (Latin America),
Farsi, Mongol, Uzbek, Hebrew.
TV System:ATV: Auto/PAL/NTSC, DTV: DVB-T MPEG2/MPEG4, DVB-T
Compatible
AV System:PAL, NTSC
HDMI & HDCP Version:2 x HDMI1.4b
HDR:HDR10
Power Supply:AC 100V-240V 50/60Hz
Power Consumption (Standby):﹤0.5W
Star Rating:5 Star
CEC:130 Kwh
ECO Energy Efficiency:Yes
BASIC FUNCTION
Google Assistant/Voice Search:Voice input via voice remote
control (RC833A)
Instant Power On:Special mode for quick boot up
CEC:Yes
Teletext:Yes
EPG:Yes (Only for DTV Programme)
Subtitle:Yes (Only for DTV Programme)
Parental Control:Yes (Only for DTV Programme)
Picture ModesVivid, Low Power, Smart HDR, Sports, Movie,
GameAspect Ratio16:9/4:3/Cinerama/14:9 Zoom/16:9 Zoom/16:9 Zoom Up
Dynamic Brightness:Off/ECO/Brightness+
Overscan:On/Off

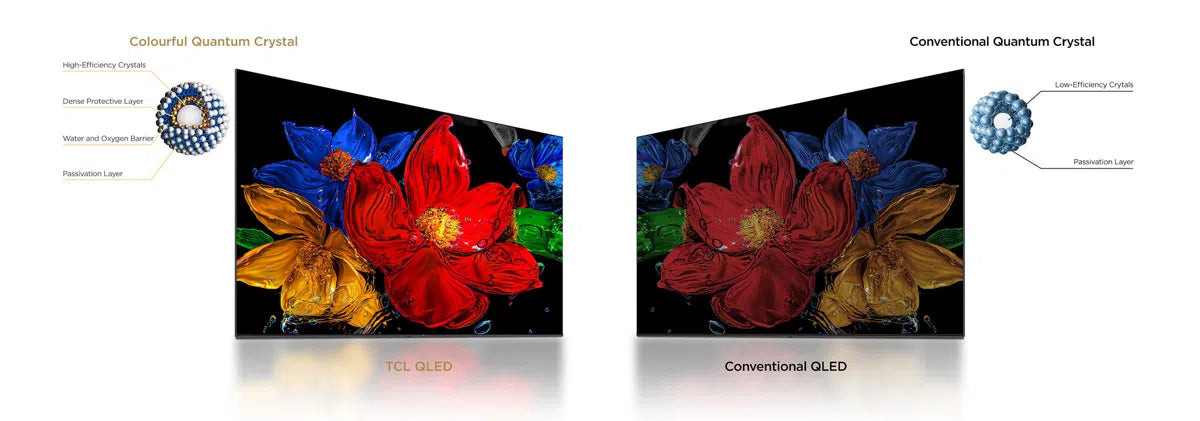

Quantum Dot Technology:Yes
CONNECTIVITY
Internet Connectivity :2.4GHz + 5GHz Dual Band WiFi
Ethernet Network
Bluetooth: Yes. Bluetooth 5.0
HDMI Inputs: 2 x HDMI Inputs (1.4b)
USB Inputs :1 x USB 2.0
AV IN :Yes
Optical SPDIF Output/HDMI eARC:Yes
eARC :Yes
USB DEVICE MEDIA FORMAT
Music: MP3/AC3/AC4
Picture :JPEG/PNG/BMP/GIF
Multimedia Video/Audio Decoder:H.264, H.265, MPEG1/2/4, WMV,
VC1, VP8, VP9, AV1
Video Format up to: Up to 1920 x 1080 @ 60Hz
USB Mouse/Key Board Support: Yes
SOUND
Audio Power Output 2 x 8W
Sound Modes Dynamic/Standard/Movie/Music/
Voice/Game/Sports
Dolby Audio Yes
Audio Channels 2.0 Ch
PANEL SPECIFICATION
Backlight Unit DLED
Aspect Ratio 16:9
Display Resolution Full HD (1920x1080)
Brightness 300 Nits (typ)
Contrast Ratio 3000:1
Response Time (G to G) 9.5ms
Viewing Angle (H/V) 178°/178°

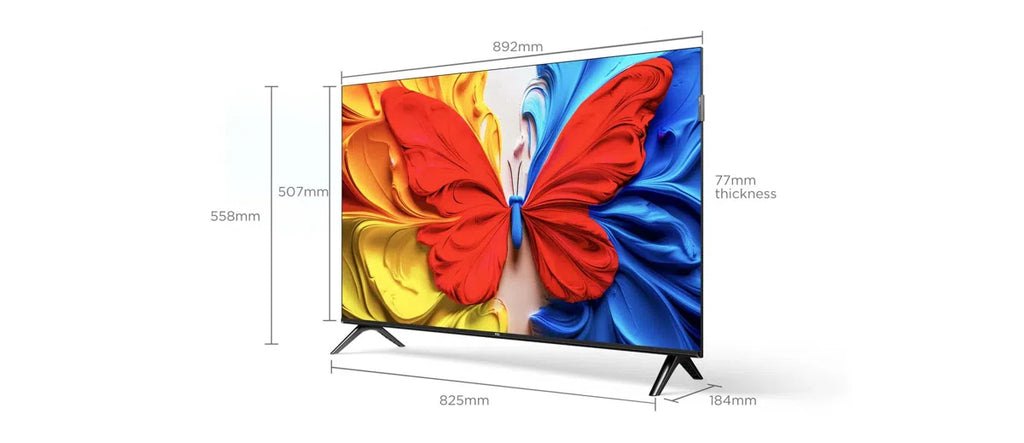

DIMENSIONS & WEIGHT
Dimensions With Stand (mm) 892 (W) x 558 (H) x 184 (D)
Dimensions Without
Stand (mm) 892 (W) x 507 (H) x 77 (D)
Carton Dimensions (LxWxH mm) 1025 x 122 x 605
Net Weight With Stand (Kg) 4.63
Net Weight Without Stand (Kg) 4.58
Gross Weight With Packaging (Kg) 6.43
WALL MOUNT VESA (PURCHASED SEPARATELY)
VESA Hole Pattern 100 x 100
Screw Size M6 x 12
Screw Quantity (pcs) 4

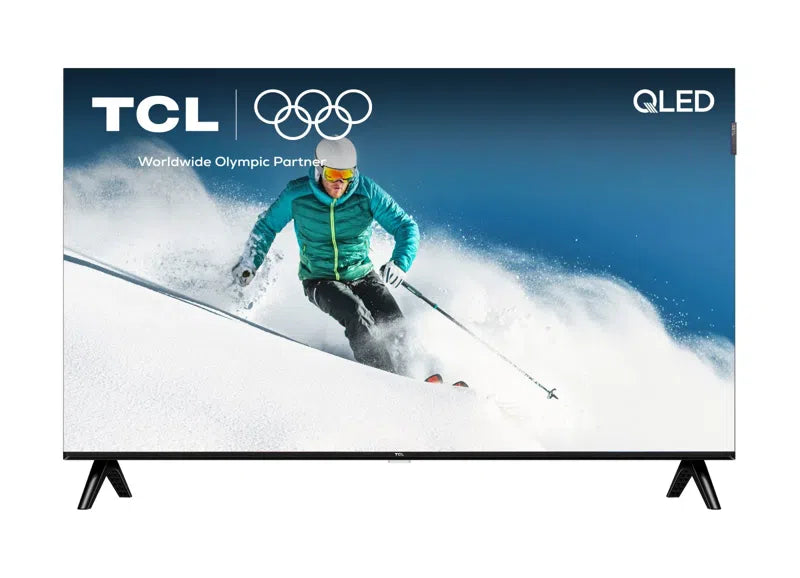

Product SKU: TCL 40S5K
